Drainage

-

Redexim Sandbander #026

  • Working width: 1.56 m.
  • Max working depth: 125-200 mm.
  • Hopper capacity: 1.5 m³.
  • Max working speed: 0.5-1.5 km/h.
  • Weight: 2035 kg (without Verti-Quake), 2650 kg (with Verti-Quake).
  • Tractor HP required: 65-90.
  • Max capacity: 1000 m²/hr.

Hired with operator only

-

Shelton Whiz Wheel #029

  • Trench Depth: Up to 560 mm (22 inches).
  • Trench Width: Adjustable options ranging from 50 mm to 160 mm (2 to 6.3 inches).
  • Engine: Powered by a Perkins 4-cylinder diesel engine.
  • Drive System: Hydrostatic drive for smooth and reliable operation.
  • Speed: Variable speed control for precision trenching.
  • Weight: Approximately 2,500 kg.
  • Dimensions: Compact design for easy maneuverability.
  • Output Conveyor: Adjustable conveyor for efficient soil removal and trenching cleanup.

Hired with operator only

-

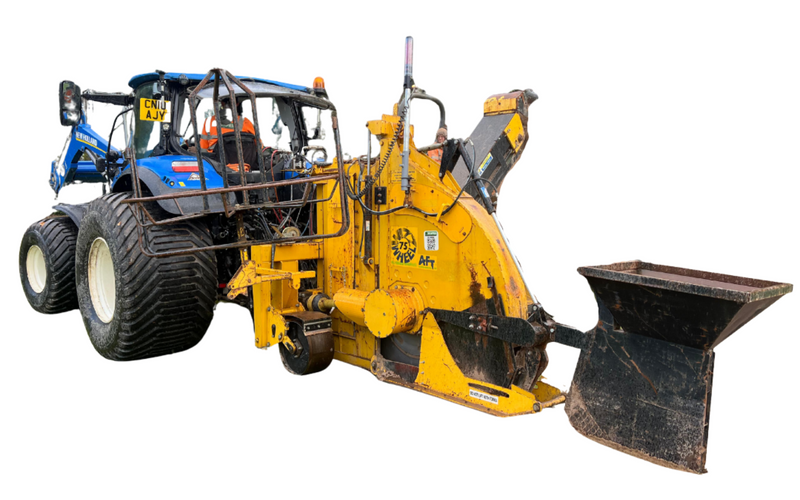

AFT 75 Whiz Wheels #088 / #089

  • Trench Depth: Up to 750 mm (29.5 inches).
  • Trench Width: Adjustable, typically between 60 mm and 125 mm (2.4 to 5 inches).
  • Engine: Diesel-powered engine for high-performance operation.
  • Drive System: Hydrostatic drive for smooth and precise movement.
  • Weight: Approximately 1,600 kg, depending on configuration.
  • Cutting Speed: Adjustable speed for optimal trenching efficiency.
  • Blade Type: Equipped with a durable, high-performance Whiz Wheel blade for cutting through various soil types.
  • Soil Displacement: Integrated soil conveyor for efficient removal and collection during trenching.

Hired with operator only

-

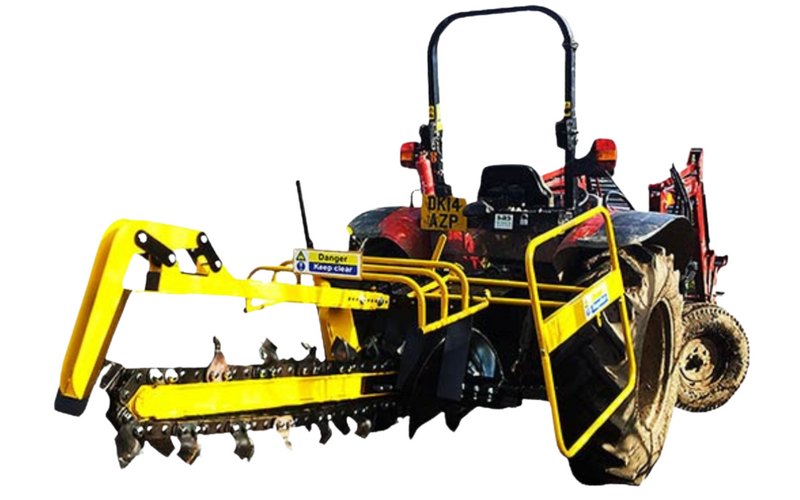

AFT 45 Whiz Wheel #088 / #089

  • Compact Design: Ideal for small to medium-sized trenching projects in confined spaces.
  • Digging Chain: Equipped with a robust, high-performance digging chain for efficient trench excavation.
  • Versatility: Suitable for heavy-duty groundwork and civil engineering applications, including utility installation and drainage systems.
  • Adjustable Depths: Precision settings for trench depth, ensuring consistent results across various project requirements.
  • Can be specified with auger, elevator and wheel trencher.

Hired with operator only

-

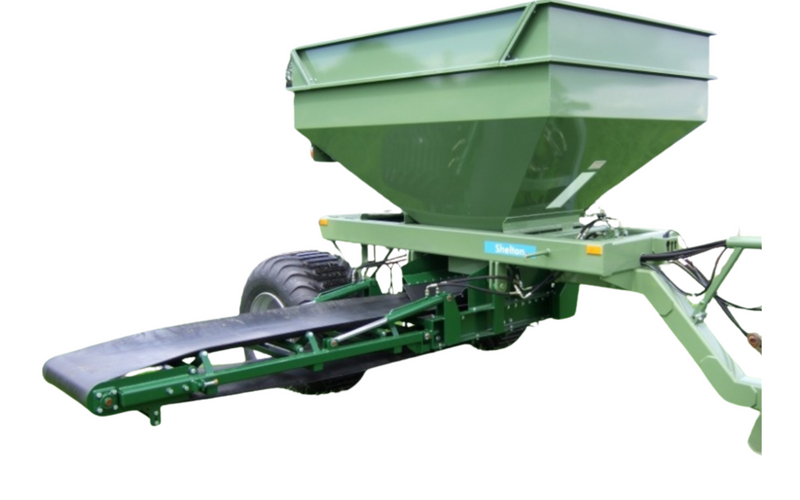

6T Gravel Cart #021

  • Capacity: 6 tonnes (gravel).
  • Dimensions: Overall height with greedy boards 2450mm (96”). Greedy boards 300mm (12”). Overall length including drawbar 4250mm (168”). Conveyor length from outside
    edge of wheel 1800mm (72”). Conveyor belt width 600mm
    (24”). Conveyor discharge height 450mm (18”) to 2000mm (78”).
  • Weight: Unladen 2 tonnes. Maximum gross 8 tonnes.
  • Tyres: 700/40 - 22.5.
  • Tractor: 60hp +.
  • Hydraulic Serv.: Two double acting are required.
  • Brakes: Hydraulically activated brakes fitted as standard.
  • Lights: Road lighting to full EC legislation.

-

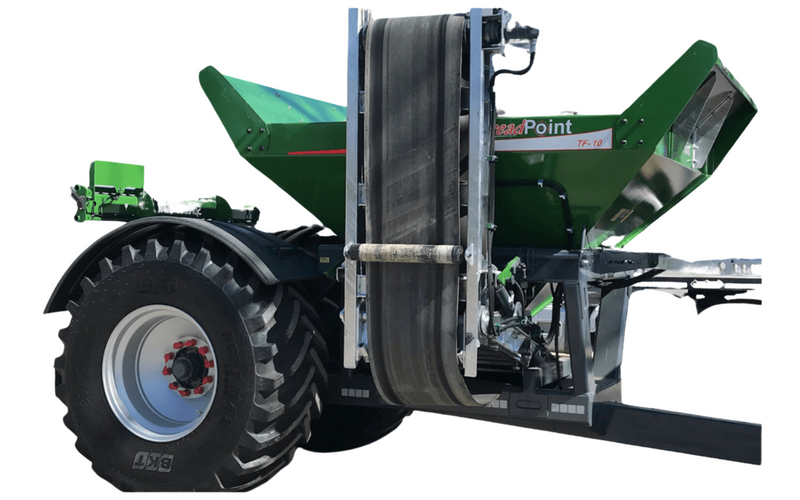

Spread Point TF-10#116 / #117

  • Hopper Capacity: 1 cubic meter, designed for carrying sand, gravel, or other fine materials.
  • Spread Width: Adjustable from 0.25 m to 1.0 m (10 inches to 39 inches) for precise material placement.
  • Application Type: Ideal for backfilling narrow trenches or spreading materials in controlled areas.
  • Flow Control: Features an adjustable flow gate to regulate material output.
  • Material Compatibility: Suitable for a variety of materials, including gravel, sand, and lightweight aggregates.
  • Mounting: Three-point linkage mounting system compatible with standard tractors.

-

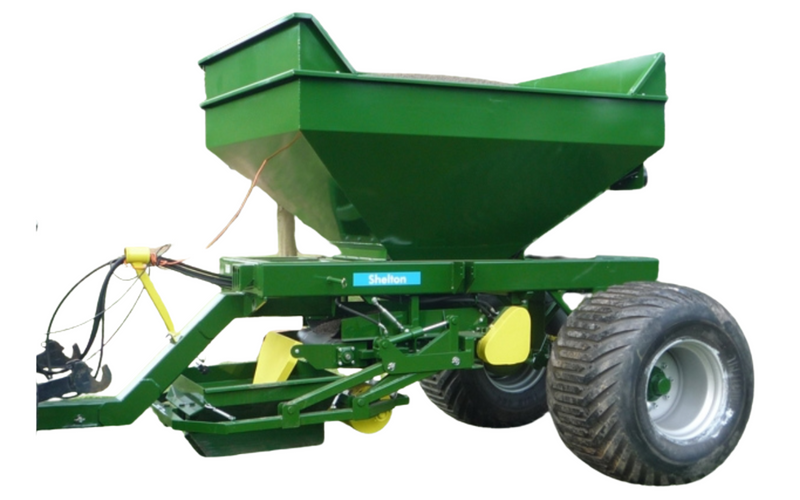

Shelton 6T Fast Flow Gravel and Sand Hopper #118

  • Hopper Capacity: Up to 6 tonnes of gravel or sand.
  • Discharge Rate: Fast-flow system ensures efficient material delivery for quicker project completion.
  • Spread Width: Adjustable spread width for precise application, typically suitable for drainage and trench
    backfilling.
  • Power Source: PTO-driven (Power Take-Off) for use with compatible tractors.
  • Dimensions: Compact and transportable for easy
    maneuverability in confined spaces.
  • Material Compatibility: Handles a variety of materials, including gravel, sand, and lightweight aggregates.
  • Construction: Heavy-duty steel build designed for durability and long-term use in demanding environments.

-

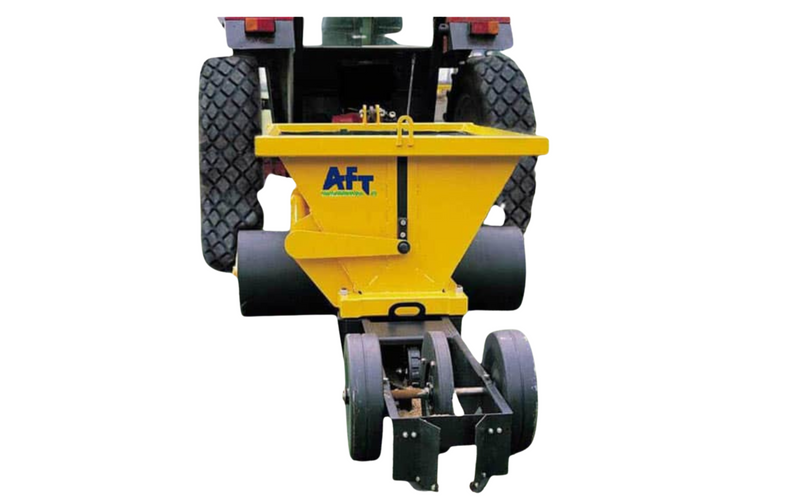

Trench Filling Boxes #015 / #024

  • Simple and economical back filling with gravel and/or consolidated sand.
  • Large steel (= clean) roller wheels to spread the weight.
  • Easy change from Gravel Unit to Sand Unit.
  • Hydraulically operated twin shutters to control the flow of material.
  • Gravel unit can be set to fill up to a pre-determined level from the surface.
  • Sand Placement Unit to fill even narrow trenches with well consolidated sand.
  • Works without use of vibrators and therefore is not subject to wear.
  • Capacity 1 cubic metres, extendable to 2 cubic metres.
